Gigabyte outs Brix IoT Ultra Compact PC Kit

Gigabyte outs Brix IoT Ultra Compact PC Kit




Gigabyte has released an ultra compact PC kit designed for Internet of Things (IoT) applications – the Gigabyte Brix IoT.




Gigabyte Brix IoT (GB-EKi3A-7100) specs:
Up to 2.40GHz Intel Core i3-7100U processor
2 x SO-DIMM DDR4 slots (DDR4 1.2V), 2133 MHz, Max. 32GB
Gigabit LAN (Intel i219LM)
Intel Dual Band Wireless-AC 3165
Intel HD Graphics 620
Realtek ALC255
HDMI Res: 4096 x 2160 @ 60Hz (HDMI 2.0 and HDCP 2.2)
Mini DP Res: 4096 x 2304 @ 60Hz
1 x M.2 slot (2280_storage) PCIe / SATA
1 x M.2 NGFF 2230 A-E key slot occupied by WiFi+BT card

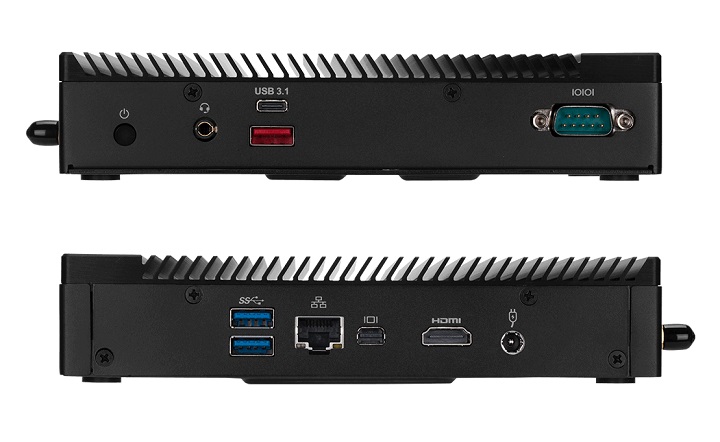

1 x Power Button
1 x Headphone / Microphone jack
1 x USB 3.1 type C
1 x USB 3.1 type A
1 x COM (RS232)
2 x USB3.0
1 x RJ45
1 x Mini DisplayPort (1.2)
1 x HDMI (2.0)
1 x DC-In
1 x Kensington lock slot
2 x Antenna SMA connector (for WiFi)
Support 1 x M.2 slot (2280_storage) PCIe /SATA
36 mm x 117 mm x 180 mm
Motherboard Size: 105 x 110 mm

Pricing is yet to be announced.



This article was written by Louie Diangson, Managing Editor of YugaTech. You can follow him at @John_Louie.
