Gigabyte outs GeForce GTX 1080 Mini ITX 8G graphics card

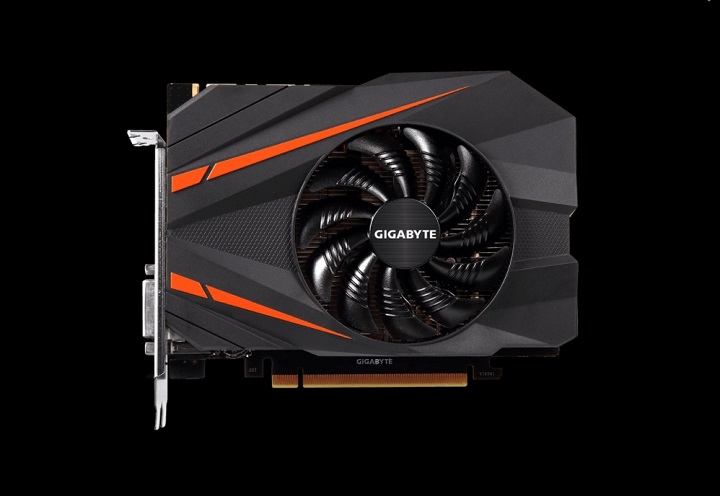

Gigabyte has recently released the GeForce GTX 1080 Mini ITX 8G, a compact graphics card designed for PCs with small chassis.

The Gigabyte GeForce GTX 1080 Mini ITX 8G, as the name suggests, is a compact graphics card measuring 169mm in length, which easily dethrones the Zotac GeForce GTX 1080 Mini measuring 211mm. It features a custom-designed cooling system with a 90mm fan, 3 pure copper composite heat-pipes, and a unique blade fan design.




Gigabyte GeForce GTX 1080 Mini ITX 8G specs:
Graphics Processing: GeForce GTX 1080
Core Clock:
~ Boost: 1771 MHz/ Base: 1632 MHz in OC Mode
~ Boost: 1733 MHz/ Base: 1607 MHz in Gaming Mode
~ (Reference Card Boost: 1733 MHz / Base: 1607 MHz)
Memory Clock: 10010 MHz
Memory Size: 8 GB
Memory Type: GDDR5X
Card Bus: PCI-E 3.0 x 16
Output: Dual-link DVI-D / HDMI / DisplayPort x3
Digital max resolution: 7680×4320
Multi-view: 4
Card size: H=37 L=169 W=131 mm
PCB Form: ATX
DirectX 12
OpenGL 4.5
Recommended PSU: 500W
Power Connectors: 8 pin
SLI support: 2-way SLI HB

Pricing and availability are yet to be announced.

source: Gigabyte



This article was written by Louie Diangson, Managing Editor of YugaTech. You can follow him at @John_Louie.
